Refinery

Watch the video
Size (sq m)
14,000
Size (sq ft)
150,000
Type
Labs
Availability
Now

plug into a new kind of life science workspace

A new 150,000 SQF lab enabled building

Serviced lab space with shared facilities from a single bench

Customisable fit-out options from shell u0026amp; core to fully fitted labs

EPC A u0026amp; BREEAM Excellent

16 car parking spaces, including 4 EV charging points

Centre of West London Life Science cluster

Available Now

Enquire now

150,000 SQF of rnlab enabled space

u003ch2u003eREFINERY AT A GLANCEu003c/h2u003ernu003culu003ern tu003cliu003eOn-site café u0026amp; restaurantu003c/liu003ern tu003cliu003e4m floor-to-floor height throughoutu003c/liu003ern tu003cliu003eFour pipe fan coil comfort cooling systemu003c/liu003ern tu003cliu003eSecure ride-in end of journey facilities for 182 bikesu003c/liu003ern tu003cliu003eCollaboration space u0026amp; atrium with super-fast Wi-Fiu003c/liu003ern tu003cliu003eFloor-to-ceiling height: 2.7mu003c/liu003ern tu003cliu003e6 air changes per hour in lab spaceu003c/liu003ern tu003cliu003e14 executive showersu003c/liu003ern tu003cliu003eEvent studio u0026amp; presentation suiteu003c/liu003ern tu003cliu003eFloor loading: up to 3.85 +1 kN/m²u003c/liu003ern tu003cliu003eBuilding services controlled u0026amp; monitored by BMSu003c/liu003ern tu003cliu003eRooftop member’s loungeu003c/liu003ern tu003cliu003e4 x 13-passenger lift u0026amp; 1 x goods liftu003c/liu003ern tu003cliu003e16 car parking spaces (including 4 x EV charging bays and 1 x disabled)u003c/liu003ern tu003cliu003eDrying roomu003c/liu003ernu003c/ulu003e

u003ch2u003eu003cstrongu003eBUILT WITH SUSTAINABILITY IN MINDu003c/strongu003eu003c/h2u003ernARC’s Refinery demonstrates excellence in sustainable and environmental redesign. The reuse of the original four storey concrete frame led to a significant reduction in carbon emissions.rnu003culu003ern tu003cliu003eBREEAM Excellentu003c/liu003ern tu003cliu003eEPC Au003c/liu003ern tu003cliu003eInsulation to achieve a standard of Zero Ozone Depletion Potentialu003c/liu003ern tu003cliu003eUp to 30% recycled content in the glazed unitsu003c/liu003ern tu003cliu003eBMS Energy Monitoringu003c/liu003ern tu003cliu003eOver 200 m2 array at roof levelu003c/liu003ern tu003cliu003eUp to 93% recycled content used in steel fabricationu003c/liu003ern tu003cliu003eUp to 75% recycled content in curtain walling and 59% in façadesu003c/liu003ern tu003cliu003e947 m2 of biodiverse roof, including rainwater retentionu003c/liu003ern tu003cliu003e3,950 sq. m of gardens and green spaceu003c/liu003ern tu003cliu003eDaylight-sensing LED light fittings to office flooru003c/liu003ern tu003cliu003eSecure, ride-in end of journey facilities for 182 bikesu003c/liu003ernu003c/ulu003e

IN THE HEART OF WEST LONDON’S LIFE SCIENCES ECOSYSTEM

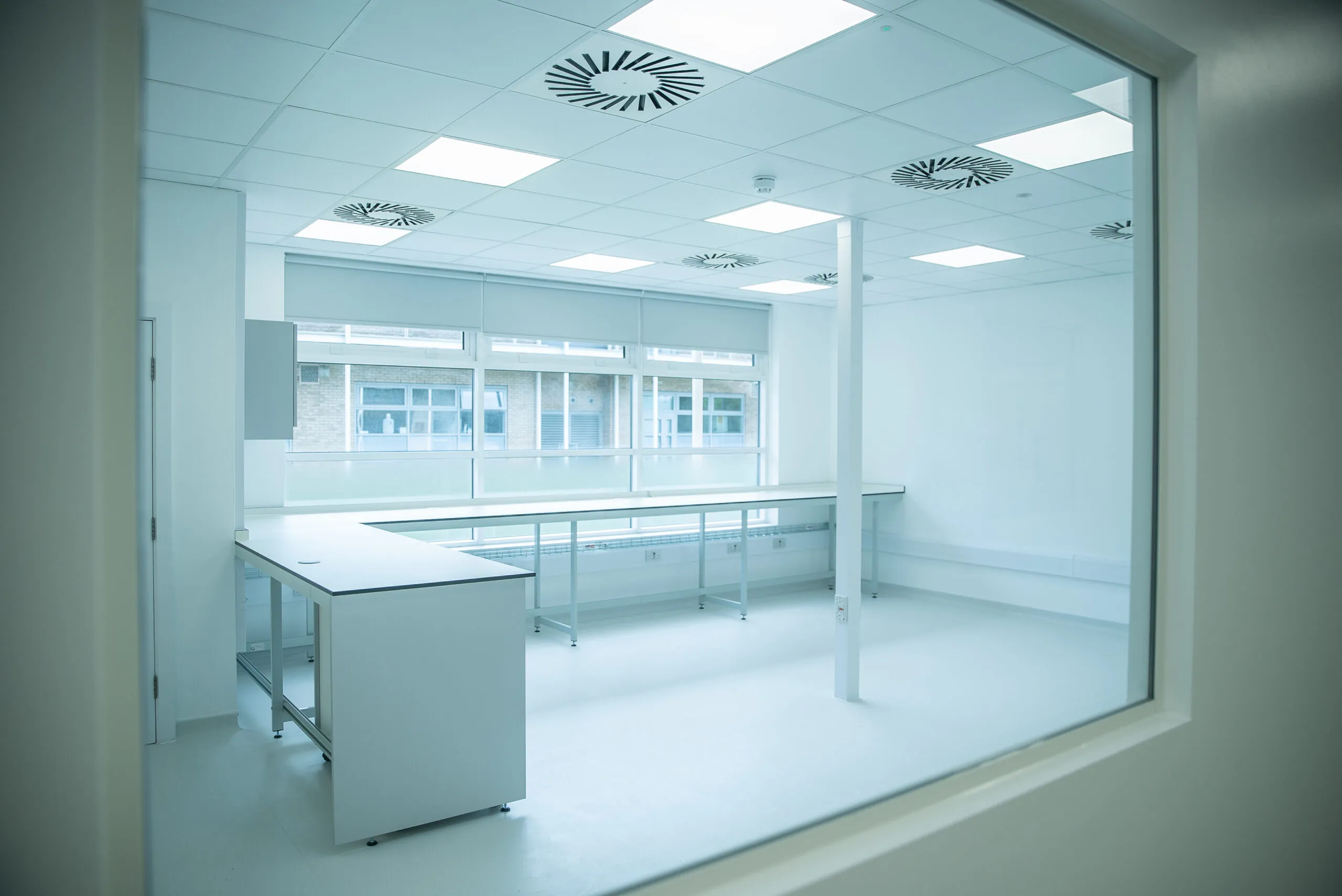

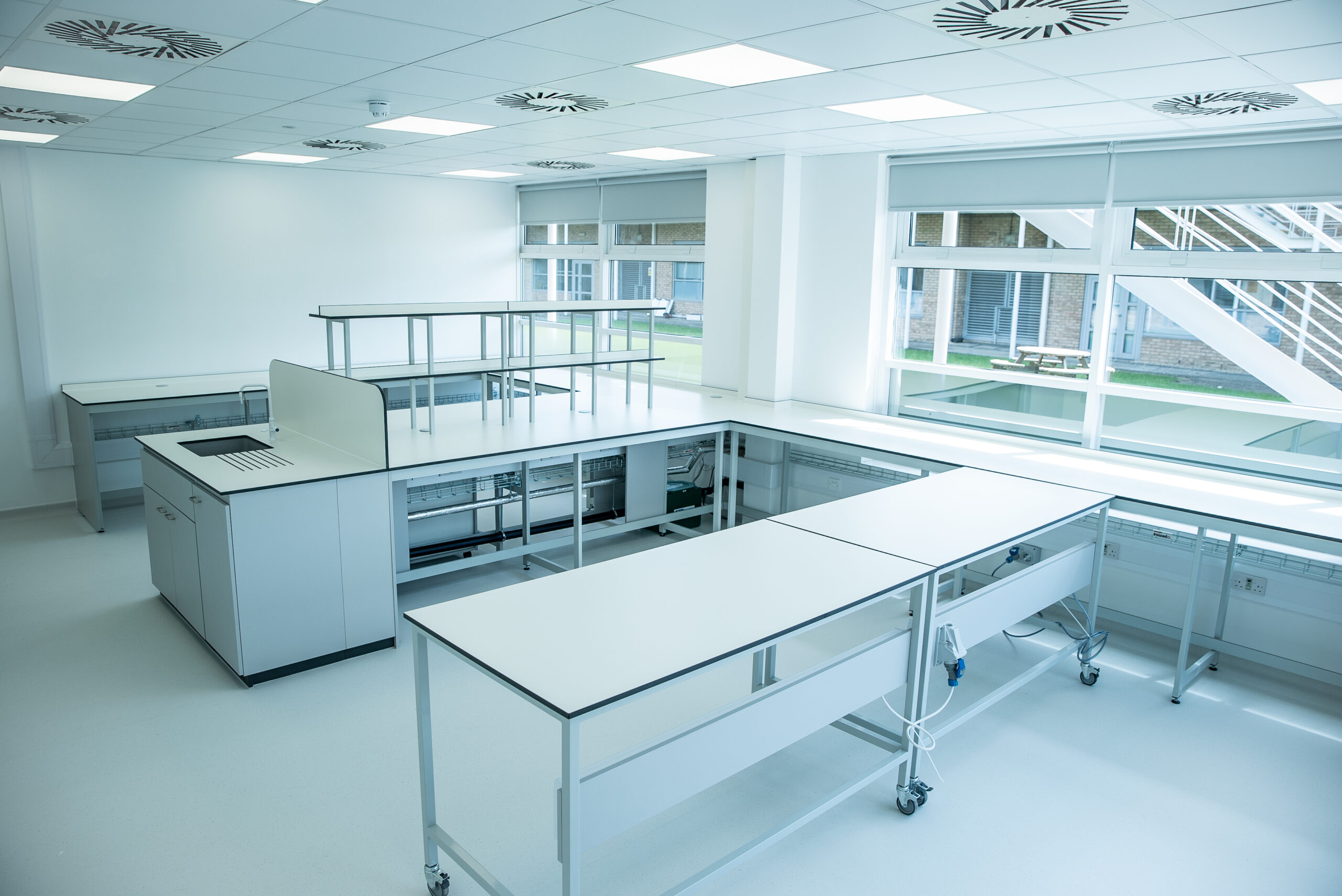

LAB READY

Refinery has always been home to pioneers, and today it continues that legacy as a lab-enabled building, purposefully designed from the basement up to support Containment Level 2 laboratories and inspire the next generation of scientific discovery. The building includes dedicated risers for fume extract, complete with steelwork ready to receive flues connected to a rooftop enclosure offering 3-metre clearance. It features designated plant and riser space for supplemental cooling, alongside essential services continuity supported by a basement generator to ensure operations remain uninterrupted. A 2000 kg goods lift with destination control and gas detection is available at grade level, while the ground floor accommodates chemical and gas storage.rnrnAdditional infrastructure includes allocated space for compressed air plant, a choice of floor and ceiling systems to optimise services distribution, and pre-perforated cladding to enable easy installation of supplemental Air Handling Units capable of delivering six or more air changes per hour across all or part of each floor. The building benefits from an incoming supply of 2.5 mVA, water treatment connection points on each floor, and Vulcathene drainage throughout, connecting to clay for enhanced durability and chemical resistance.

FLOOR PLANS

  • Ground Floor
  • First Floor
  • Second u0026amp; third Floor
  • Fourth Floor
  • Fifth Floor
Ground Floor
Unit Sq m Sq ft
Ground floor Motherlabs (NET Internal) 1,188 12,788
Ground floor Motherlabs (GROSS Internal) 2,647 28,494
First Floor
Unit Sq m Sq ft
First Floor (NET Internal) 2,082 22,410
First Floor (GROSS Internal) 2,471 26,594
Second u0026amp; third Floor
Unit Sq m Sq ft
Second Floor (NET Internal) 2,085 22,443
Second Floor (GROSS Internal) 2,478 26,671
Third Floor (NET Internal) 2,085 22,443
Third Floor (GROSS Internal) 2,478 26,671
Fourth Floor
Unit Sq m Sq ft
Fourth Floor (NET Internal) 2,028 21,827
Second Floor (GROSS Internal) 2,478 26,671
Fifth Floor
Unit Sq m Sq ft
Fifth Floor (NET Internal) 910 9,792
Fifth Floor (GROSS Internal) 1,607 17,297
